Eicher Tractors

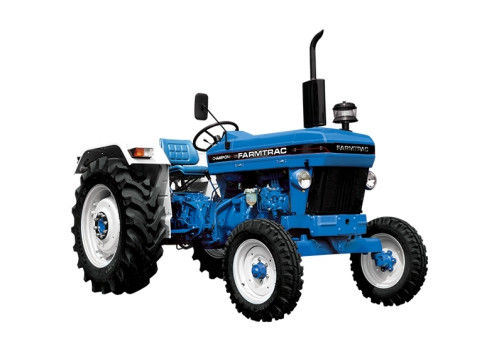

Eicher 380 and Farmtrac Campion 39 2WD
Engine | |||||
---|---|---|---|---|---|
Engine rated RPM | N/A | 2000 RPM | |||
HP Category | 40 HP | N/A | |||
Displacement CC in | 2500 CC | N/A | |||
No. of cylinder | 3 Cylinder | 3 Cylinder | |||
Fuel Pump Type | Inline | N/A | |||
Transmission | |||||
Transmission type | Central Shift - Combination Of Constant & Sliding Mesh, Side Shift (Optional) | Constent Mesh , Center Shift | |||
No. of gears Forward | 8 Forward | N/A | |||
No. of gears Reverse | 2 Reverse | N/A | |||
Brakes type | Dry Disc Brakes | N/A | |||
clutch type | Single/Dual Clutch (Optional) | Single clutch | |||
Gear Box Type | N/A | 8 Forward + 2 Reverse | |||
Power Take Off | |||||
PTO RPM @ engine, rpm | 540 RPM | 1810 RPM | |||
PTO Type | Live | N/A | |||
Steering | |||||
Steering type | Mechanical/Power Steering (Optional) | N/A | |||
Hydraulic | |||||
Lifting Capacity Max. | 1200-1300 Kg | 1500 Kg | |||
3 Point Linkage | Automatic Depth And Draft Control | N/A | |||
Dimensions & Weight | |||||
Ground Clearance | 355 Nm | N/A | |||
Total Weight | 1980 Kg | N/A | |||
Turning radius With Brake | 3000 Nm | 3000 Nm | |||
Overall Length | 3515 mm | N/A | |||
Overall Width | 1650 mm | N/A | |||
Wheel Base | 1905 mm | N/A | |||
Wheels & Tyres | |||||
Tyre Size Front | 6.00 x 16 | N/A | |||
Tyre Size Rear | 12.4 x 28 | N/A | |||
Electrical | |||||
Battery Capacity | 12 V 75 Ah AH | N/A | |||
Others |
